電動漿液閥安裝尺寸以及外形圖

產品概述
電動漿液閥型號為Z973X，采用多回轉電動裝置，用以驅動和控制閥門的開啟和關閉，操作人員可以在控制室內遠距離對閥門進行控制，也可以現場手動操作，也可以與計算機配合實現。
本閥門適用于糖漿、紙漿、泥漿、污水、煤漿等介質管路上，作啟閉調節和節流使用，適用于水平安裝，亦可傾斜安裝。
技術參數范圍
公稱壓力：0.6MPa，1.0MPa，1.6MPa
公稱通徑：DN50-DN1000
適用溫度：-10~+200℃
連接法蘭：GB/T9113、JB/T79
主體材料：HT250，WCB，CF8
密封型式：軟密封
泄 漏 量：A級（零泄漏）
配套附件：安裝法蘭
電動裝置參數
1、電源：AC220V、AC380V、50HZ、60HZ
2、標準型：標準型產品具有防塵、防雨水的外殼保護能力、防護等級IP65,可直接用于戶外
3、防水型：防水型產品具有防塵、防浸水(IP67)的外殼防護等級
4、防爆型(EX)：防爆等級為DII BT4/DII CT4(不含乙炔)
5、環境溫度：-20℃～40℃
6、可選：配電氣控制器
電動裝置特點
1、啟閉迅速，平穩可靠，自動化程度高
2、安裝高度及位置不受限制
3、可以采用防爆型電動裝置，在易燃易爆，甚至有毒氣體環境中也可以正常工作
4、配有手動，萬一供電間斷，可以手動操作開啟或關閉漿液閥，有效控制介質，防止事故發生
Product introduction
Electric slurry valve type for Z973X, adopt multi-turn electric device, is used to drive and control the opening and closing of the valve, operators can to control the valve in the control room distance, can also be the scene manual operation, can also cooperate with computer implementation.
The valve is suitable for pipeline conveying such mediumsin cluding syrup,paper pulp,sludge,sewage,coal slurry,etc.for controlling switching on/off and throttling.It allows horizontal mounting as well as inclined mounting.
Technical Parameter Range
Nominal pressure:0.6MPa，1.0MPa，1.6MPa
Nominal diameter:DN50-DN1000
Suitable temperature:-10~+200℃
Flange drilling:GB/T9113、JB/T79
Main materials:HT250，WCB，CF8
Seal type:Teflon soft seal
Accessories:Flange
Electric actuator parameters
1、Power supply: AC220V, AC380V, 50 hz, 60 hz
2、Standard: standard products with dust, prevent the rain shell, protective class IP65 protection ability, can be directly used in outdoor
3、Waterproof model: waterproof type products with dust, prevent flooding (IP67) shell protection grade
4、Explosion-proof type (EX) : explosion-proof grade for DII BT4 / DII CT4 (excluding acetylene)
5、Ambient temperature: - 20 ℃ to 40 ℃
6、Optional: electrical controller
Electric actuator characteristics
1、Opening and closing fast, stable and reliable, high degree of automation
2、Installation height and position is not restricted
3、Explosion proof electric actuator can be used in inflammable and explosive, and toxic gases can work normally in the environment
4、Equipped with manual, one thousand a continuous power supply can be opened or closed manually slurry valves, effective control of medium, prevent accidents

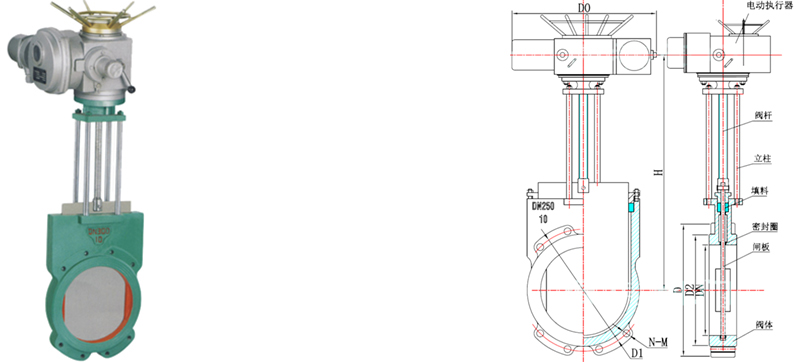

主要外形及連接尺寸Profile and connection dimension												單位Unit:mm
PN	DN	L	D	D1	D2	H	N-M	Do	PN	DN	L	D	D1	D2	H	N-M	Do
0.6	50	40	125	100	90	370	4-16	180	1.0	50	40	125	100	99	370	4-16	180
	65	40	145	120	100	460	4-16	180		65	40	145	120	120	460	4-16	180
	80	50	160	135	125	590	4-16	220		80	50	160	135	135	590	4-16	220
	100	50	180	155	145	780	4-16	220		100	50	180	155	155	780	4-16	220
	125	50	210	185	175	950	4-16	230		125	50	210	185	185	950	4-16	230
	150	60	240	210	200	980	4-20	280		150	60	240	210	210	980	4-20	280
	200	60	295	265	255	1055	4-20	360		200	60	295	265	265	1055	4-20	360
	250	70	350	320	310	1060	8-20	360		250	70	350	320	310	1060	8-20	360
	300	70	400	368	362	1230	8-20	400		300	80	400	368	375	1230	8-20	400
	350	80	460	429	412	1250	10-20	400		350	90	460	429	435	1250	10-20	400
	400	80	515	482	462	1767	10-22	400		400	120	515	482	485	1767	10-22	400
	450	90	565	532	518	1920	14-22	530		450	120	565	532	545	1920	14-22	530
	500	100	620	585	568	2010	14-22	530		500	130	620	585	609	2010	14-22	530
	600	100	725	685	670	2110	14-27	600		600	140	725	685	720	2110	14-27	600
	700	100	940	800	775	2400	16-27	600		700	140	940	800	788	2400	16-27	600
	800	120	950	905	880	2800	16-27	680		800	150	950	905	898	2800	16-27	680
	900	120	1050	1005	980	3000	20-30	680		900	150	1050	1005	998	3000	20-30	680
